Kee-Ta-Quay Construction

  • General Contractor: KEE-TA-QUAY /TERRA STRUCTURES

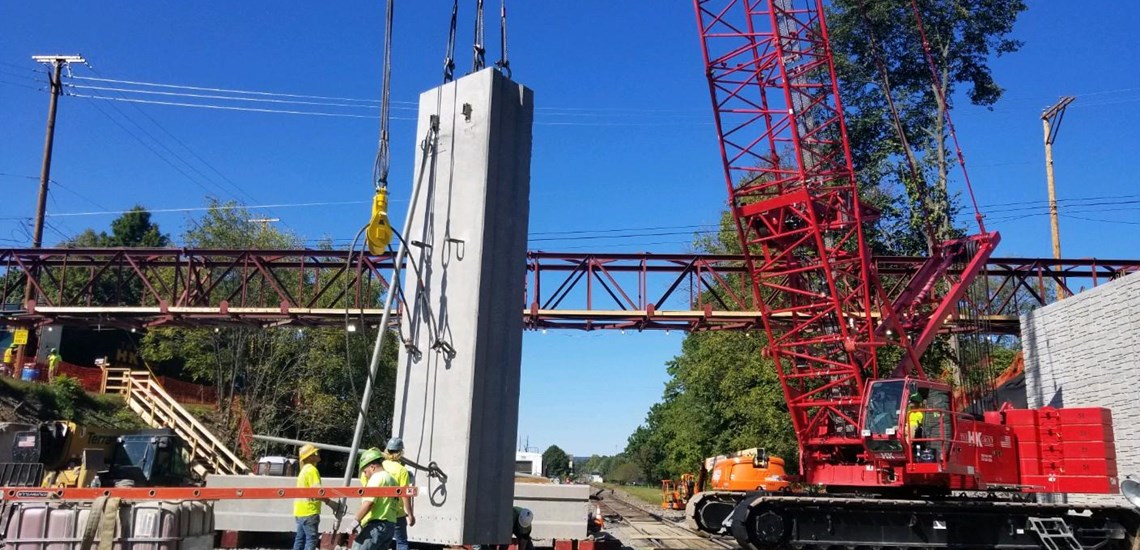

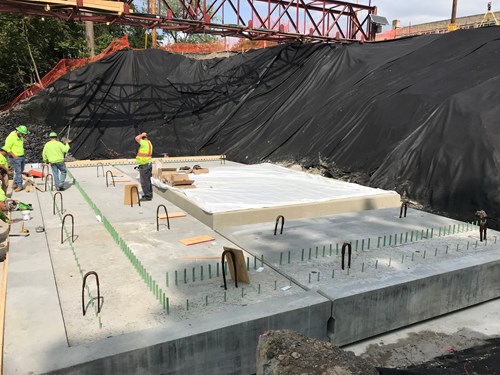

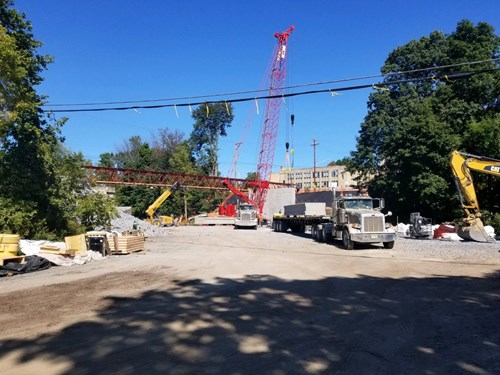

  • Project: EAST STROUDSBURG, PA/MONROE CO SR2024 OVER DELAWARE LACKWANNA RAILROAD

  • Number of Beams & Size: (1) 9’5” X 3’6” X 25’4”  @  49.3T STEM

  •  Number of Beams & Size: (3) 5’1” X 3’3” X 27’ @ 35T  &  (3) 6’3” X 3’3” X 27’ @ 42T WING WALLS

  • Number of Beams & Size: (2) 9’5” X 3’6” X 25’4”  @  48.8T

  • Number of Beams & Size: (1) 12’1 ¾” X 2’9” X 14’5” @ 34.7T

  • Number of Beams & Size: (1) 14’5” X 2’9” X 16’0” @ 46.7T

  •  Number of Beams & Size: (1) 13’6 ½” X 2’9” X 14’5” @ 39T

  • Number of Beams & Size: (1) 14’5” X 2’9” X 16’6 ½” @  39.2T

  • Number of Beams & Size: (1) 14’5” X 2’9” X 16’0” @ 46.7T

  • Number of Beams & Size: (3) 13’6 1/2” X 2’9” X 14’5”  @39T

  • Number of Beams & Size: (2)  9’5” X 3’6” X 25’4”  @  49.3T STEMS

  • Number of Beams & Size: (3) 5’1” X 3’3” X 16’0” @ 35

  • Number of Beams & Size: (3) 6’3” X 3’3” X 27’1 7/8” @ 42.1T

  • Number of Beams & Size: (1) 7’9” X 3’3” X 23’8 ¼”  @  45.6T WW

  • Number of Beams & Size: (3)  5’4” X 3’3” X 23’7”  @ 31.4T  WW

  • Number of Beams & Size: (4) 5’4” thru 7’5” X 3’3” X 23’8 ¼”  @  31T thru 44T WING WALLS

  • Number of Beams & Size: (5) 9’5” X 3’3” X 21’7”  @  40.5T  STEMS

  • Number of Beams & Size: (3) 11’10” X 2’3” X 17’11 ½” thru 16’10 ¼”  @  33T thru 31.9T

  • Number of Beams & Size: (2)  12’5” X 2’3” X 18’10 3/8” thru 18’2”  @  36T thru 35.7T

  • Number of Beams & Size: (2)  MOCK SAMPLES  @ 21.5T
